record DFA 127 FIRE – Closes reliably in case of fire
Just like the door to your apartment at home, a key-operated contact enables you to operate your automatic door. Turning the key overrides all previously saved operational modes and immediately opens the door. In this way, shopkeepers can gain access to their business in the morning without having to worry about timers or use separate doors at the back.
A record SSK perfectly integrates the convenience of an automatic door system with an enhanced level of burglar protection, like record multipoint locking, or automatic burglar resistant doors record SAFECORD RC 2 and record THERMCORD RC 2 models. This makes poorly accessible, dirty floor locks that get in the way obsolete and a thing of the past.
The record AIR 290 is an active infrared sensor that generates a narrow light curtain reaching to the floor. The opening impulse is triggered when an object enters the light curtain. This sensor is particularly suitable when only a small field of detection needs to be covered.
The mode of operation is selected intuitively using the BDE-D electronic remote control; the display features text in the language of your choice. The convenient and user-friendly BDE-D remote control can also be used to set or modify application-specific door parameters such as opening and closing speeds, opening widths for reduced opening, duration of open times, etc.
Bacteria and viruses are mainly transmitted through the hands. When the door handle turns into a germ spreader, this is a problem for companies, especially in the hygiene sector. On many everyday things like smartphones, shopping carts, light switches or door handles adhere to the unwelcome bacteria firmly. For hospitals, doctors’ surgeries, restaurants as well as the food processing industry the touchless switch is the perfect solution. Are the hands occupied with carrying shopping bags, anything else or by typing a message on the smartphone, the approach to the switch is enough and and the automatic door open.
In addition to the simple operation of the door, the record BLS 60 is hygienic to use, as at no time the skin comes into contact with the object.
For automatic doors that are only rarely opened, we provide this simple push-button switch. Available as a surface mounted version complete with an additional housing, or as a flush fitting, concealed version for installation in all current mounting frames.
When analyzing its immediate environment, the record RAD 290 motion detector permanently communicates with the control device. The detection field is defined electronically, allowing it to eliminate previously acquired door movements. Time-consuming mechanical fine adjustment of the sensor is thereby eliminated. Also, changes to the field due to temperature differentials are largely uncritical.
The record RC SWING safety sensor is directly mounted on one or both sides of swing door leaves, and functions as ride sensor. Its active infrared light curtain prevents collisions of the door leaf with persons or objects. Thanks to its slim design, it can be easily positioned on the door leaf.

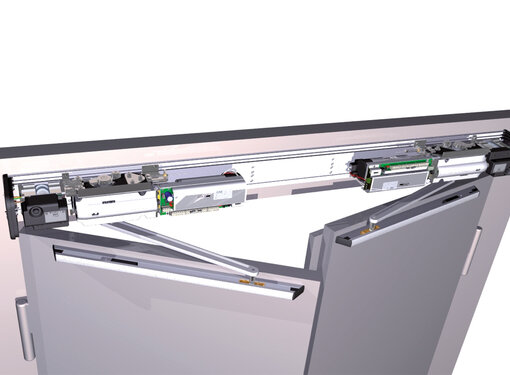

The completely integrated operator solution for 2-leaves hold-open systems on fire doors. The mechanical interconnection of both op-erators for stand and moving leaf ensures appropriate closing sequence after triggering by a fire alarm system and also in case of power failure.
The contactless IR hygienic button triggers an opening impulse without having to touch its surface.
Unlike the infrared sensors of the record 290 series, the detection field of this contactless switch is very small, so that it triggers only if a targeted movement occurs in its immediate vicinity. Inadvertent triggering is thus avoided, making the record contactless switch ideal for applications in hospitals, such as when entering the operating theatre after disinfecting the hands to perform surgical operations.
The record wireless button is a wireless 868.3 MHz radio-controlled button that can be attached to almost any point up to 30m from the door. Pushing the button transmits a radio signal with an embedded code to the receiving unit at the door control, triggering an opening impulse. Piezoelectric technology makes the record wireless button maintenance-free, and also means it does not require batteries. Included is also an adhesive film, which enables you to attach the radio-controlled button to glass, tiles or even painted walls.
